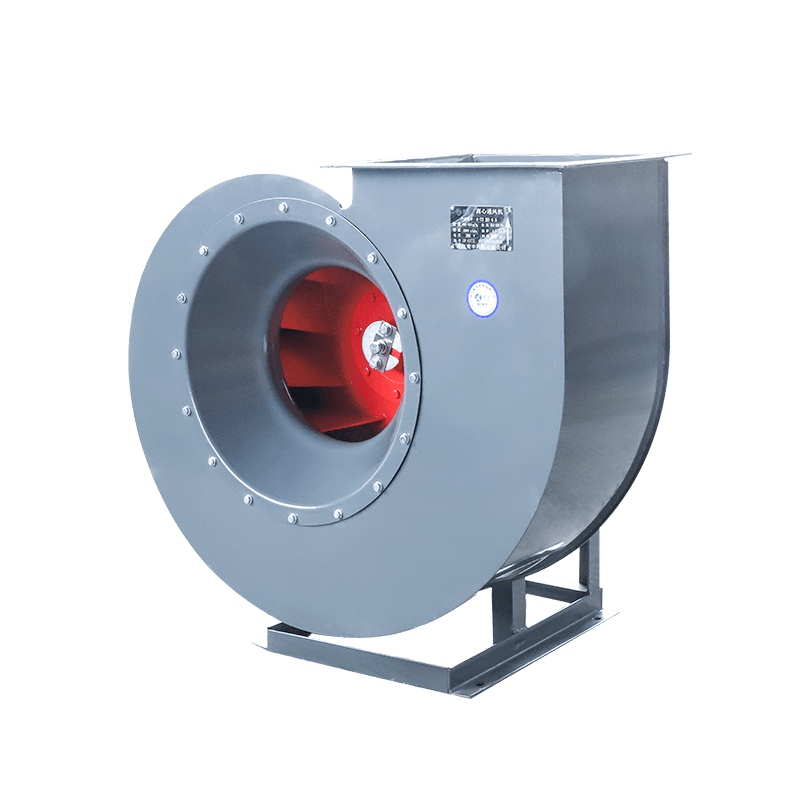

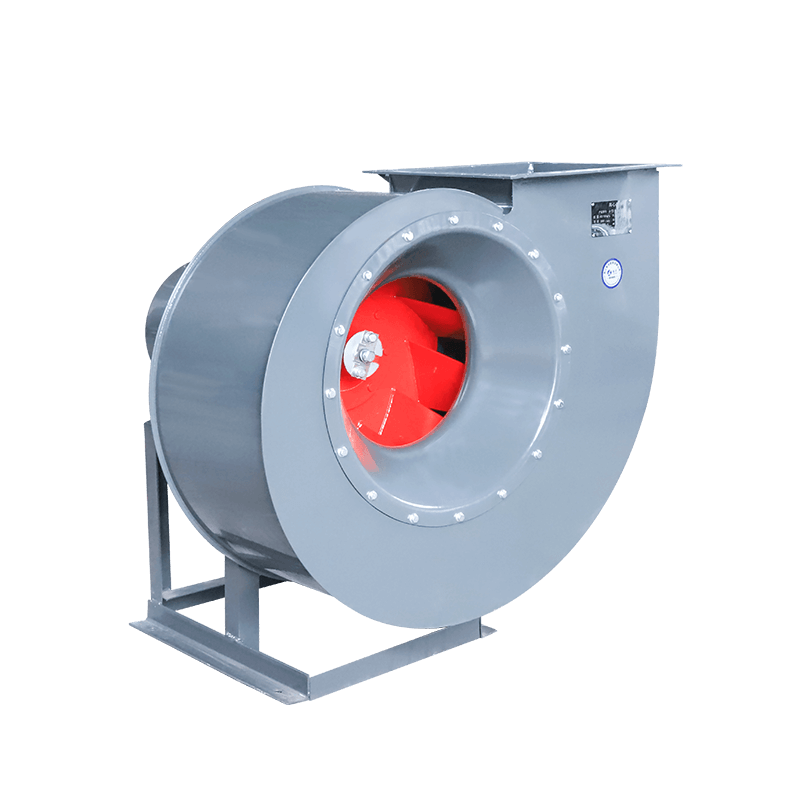

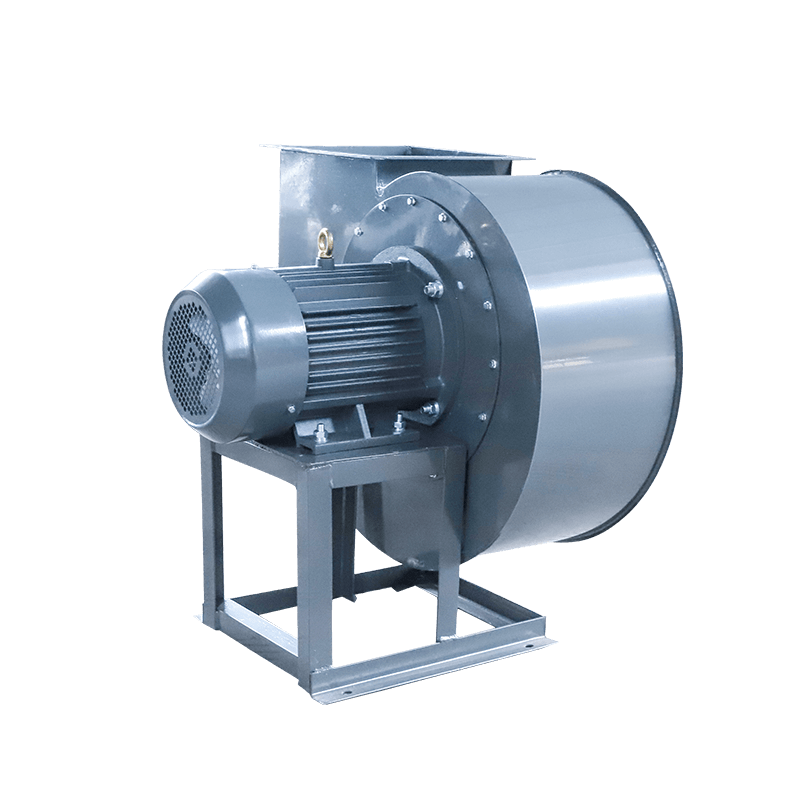

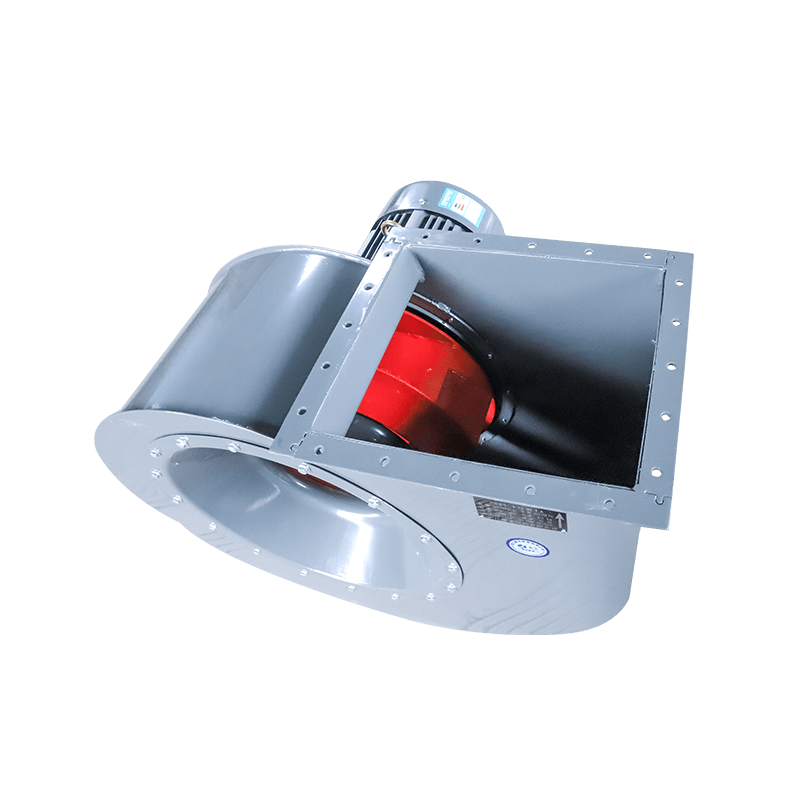

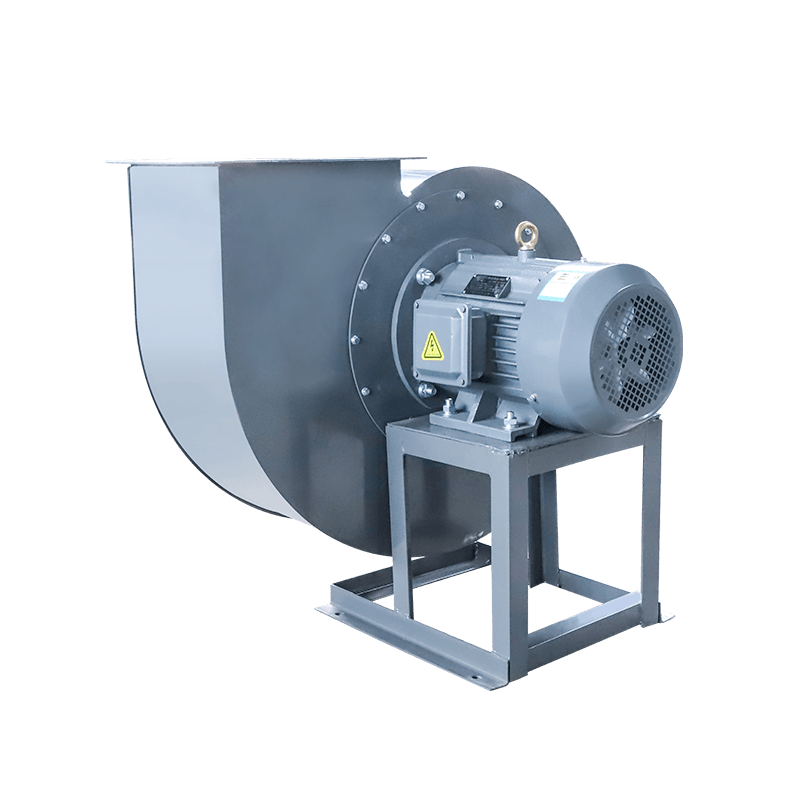

4-72A Centrifugal fan 380V industrial suction dust removal fan blower

Core Performance: Long service life, easy to maintain. High efficiency, quiet operation,Robust welded construction.

Applications: Suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.

Function:
● It consists of 10 backward-inclined steel blades, a curved front disc and a flat rear disc. Made of steel plate and corrected by dynamic and static balance, it has good air performance, high efficiency and stable operation.

● Custom solutions at series production prices.

Details

Aircraft number (N2)	Model	Power (KW-P)	Flow (m³/h)	Full pressure (Pa)
2.5A	Y801-2	0.75-2P Three phase	805-1677	792-483
2.5A	Y802-2	0.75-2P Single Phase	805-1677	792-483
2.8A	Y90S-2	1.5 Single Phase	1131-2356	994-606
2.8A	Y90S-2	1.5 Three phase	1131-2356	994-606
3.2A	Y90L-2	2.2 Single Phase	1688-3517	1300-792
	Y90L-2	2.2 Three phase	1688-3517	1300-792
	Y90S-4	L1 Single Phase	884-1758	324-198
	Y90S-4	1.1 Three phase	884-1758	324-198
3.6A	Y100L-2	3 Three phase	2664-5268	1578-989
3.6A	Y90S-4	1.1 Three phase	1332-2634	393-247
4.0A	Y132S2-2	5.5 Three phase	4012-7419	2014-1320
4.0A	Y90S-4	1.1 Three phase	2006-3709	501-329
4.5A	Y132S2-2	7.5 Three phase	5712-10562	2554-1673
4.5A	Y90S-4	1.1 Three phase	2856-5281	634-416
5A	Y160M2-2	15 Three phase	7728-15445	3187-2019
	Y160M2-2	11 Three phase	6800-13700	2900-1800
	Y100L-4	2.2 Three phase	3864-7728	790-502
5.6A	Y100L-4	3 Three phase	7062-9885	957-759
6A	Y112M-4	4 Three phase	6677-13353	1139-724
6.3A	Y132S-4	5.5 Three phase	7729-15458	1256-798
7.1A	Y160M-4	11-4 Three phase	12676-20513	1573-1168
