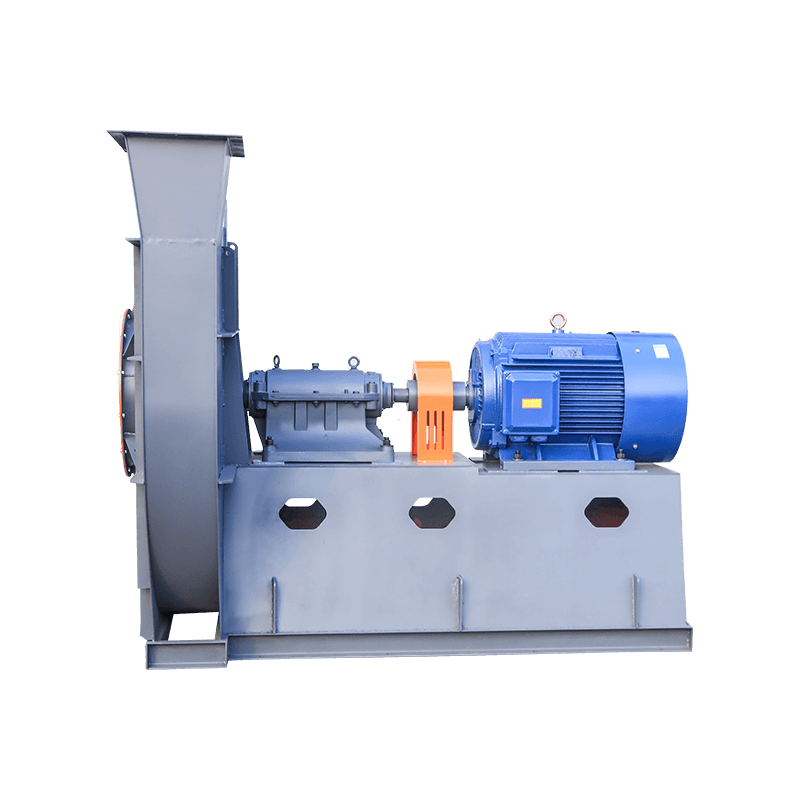

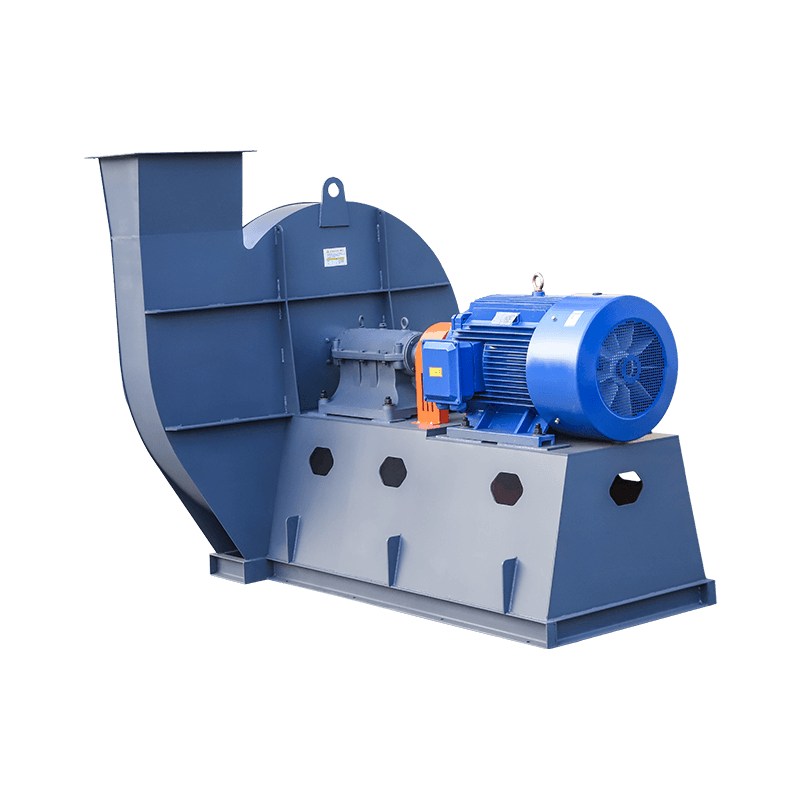

9-19D type high pressure centrifugal fan fan high suction suction fan blower drive fan high temperature resistant fan

Core Performance: Huge air pressure, high temperature resistant, high efficiency, anti-corrosion
Applications: Building ventilation, Fume removal, Dust removal, Dust collection, Oven and dryer exhaust, Combustion air, Incinerators, Heat recovery.

Function:
● It can output high out gas pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered. Compact shape, saving space. Heavy steel plate construction throughout.

● The parts are tightly matched and the sealing performance is good, ensuring that the output pressure will not decrease.All blowers statically and dynamically balanced.

Details

Aircraft number	Power(W)	Rotational Speed(r/min)	Airflow(m³/h)	Full pressure(pa)
6.3D	45-2	2900	9698-8915	8588-11883
6.3D	55-2	2900	8636-8310	12699-13525
7.1D	75-2	2900	12427-12078	12292-14643
7.1D	110-2	2900	11776-10635	15826-19360
8D	132-2	2900	15955-15504	17584-20947
	200-2	2900	15112-13634	22640-27696
	18.5-4	1450	3834-3529	8792-12166
	30-4	1450	3421-3294	13001-13848
9D	30-4	1450	4869-1736	12518-14913
9D	45-4	1450	4620-4181	16118-19717
10D	55-4	1450	6143-5920	17172-21465
10D	75-4	1450	5761-5065	23612-30052
	110-4	1450	7747-7009	24126-36189
	132-4	1450	6691-6382	39205-42221
	30-6	960	3346-3140	15973-21963
	37-6	960	3031-2763	23959-27953
12.5D	160-4	1450	9713-9356	33540-41925
	250-4	1450	9103-7993	46117-58695
	45-6	960	4179-3921	22206-30533
	75-6	960	3785-3450	33309-38860
14D	250-4	1450	12285-12109	47121-53011
	410-4	1450	58902-82463	11830-10095
	75-6	960	5262-5188	31197-35097
	110-6	960	5071-4341	38997-54596
16D	500-4	1450	16250-16014	70339-79131
	850-4	1450	15640-13324	87923-123090
	185-6	960	6911-6254	46569-69854
	220-6	960	5971-5696	75675-81496
