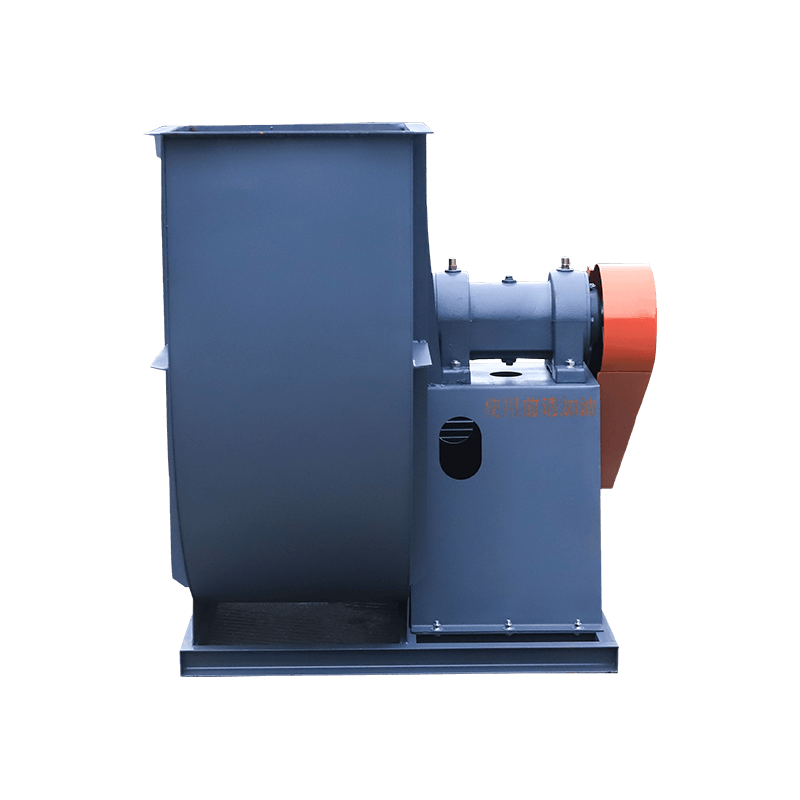

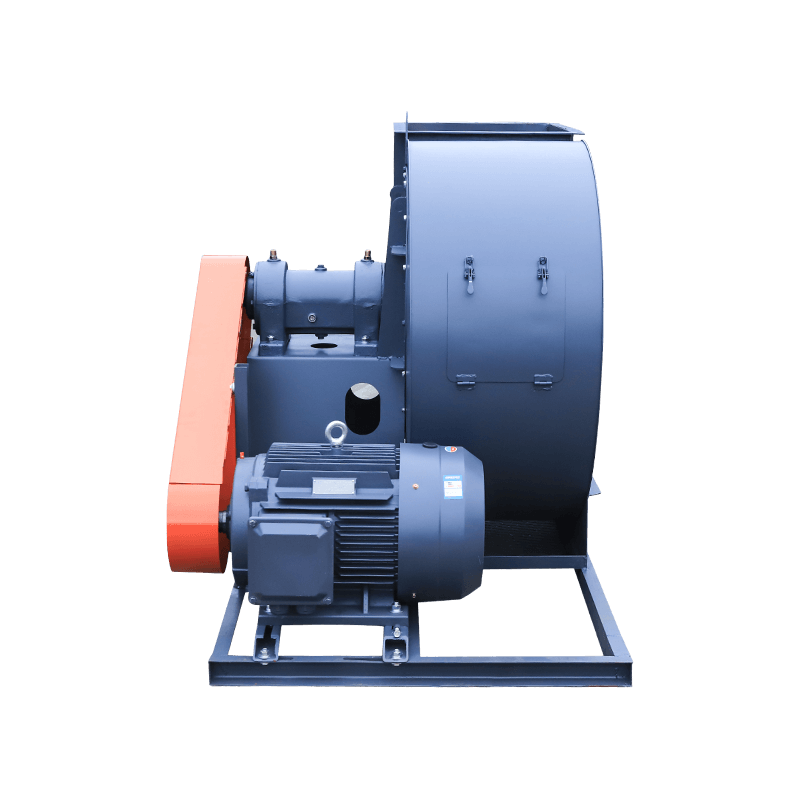

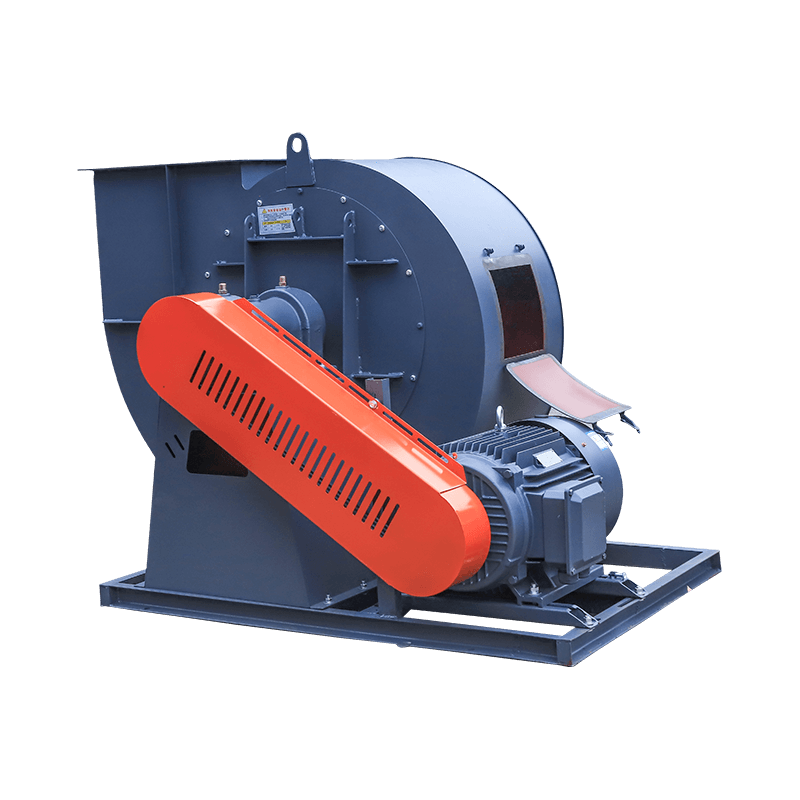

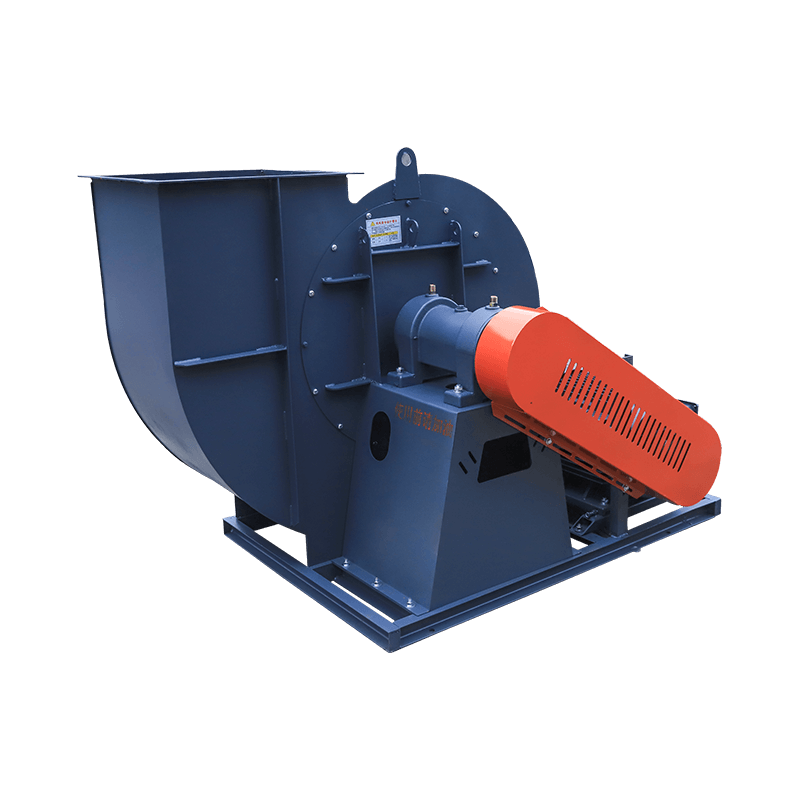

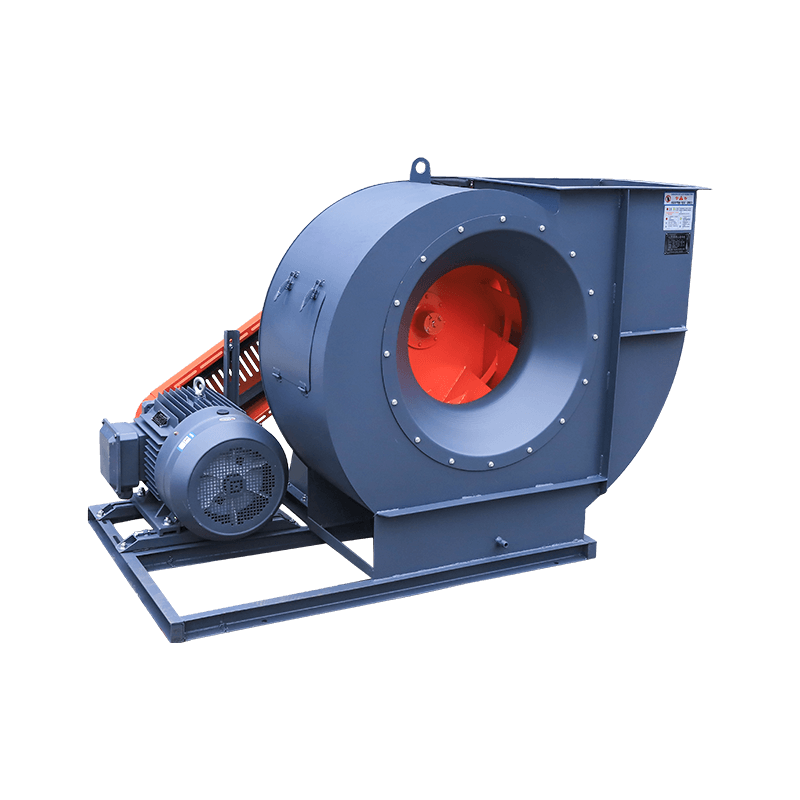

4-72C Centrifugal fan industrial dust induced fan exhaust exhaust fan blower

Core Performance: Large air volume, low vibration, low noise and high temperature resistance. Laser cutting and blanking greatly improves the product accuracy, and the shape is beautiful and generous.

Applications: Widely used in industrial and mining enterprises, large buildings, factories, hotels, restaurants and other indoor and outdoor ventilation. Especially suitable for heating stoves, hot blast stoves, drying, chemical, food, grain machinery and other related industries.

Function: The motor adopts YE series high-efficiency and energy-saving motor, with high efficiency, low energy consumption, good quality and long life. Optional high temperature resistant extended shaft motor, high temperature resistant 200°C.

Details

Aircraft number	Main shaft speed(r/min)	Matching motor (kw-p)	Flow(m³/h)	Full pressure(pa)
6.0C	2530	22-2	15242-21333	3488-2760
	2400	18.5-2	14459-20237	3139-2484
	2240	15-2	10314-20628	2734-1733
	2000	11-4	9209-18418	2176-1380
	1800	7.5-4	8288-16576	1760-1116
	1600	5.5-4	7367-14734	1389-881
	1250	3-4	5756-11511	846-537
6.3C	2350	22-2	16389-22939	3318-2626
	2200	18.5-2	15342-21474	2908-2303
	2050	15-4	14297-20010	2525-1998
	1900	11-4	13260-18546	2169-1718
	1600	7.5-4	11158-15618	1538-1218
	1300	5.5-4	9066-12689	1015-804
7.1C	2000	30-2	19965-27944	3052-2415
	1920	22-4	19166-26826	2813-2226
	1800	18.5-4	15736-25265	2422-1801
	1600	15-4	13987-22635	1914-1423
	1450	11-4	12676-20513	1573-1168
	1200	5.5-4	10490-16976	1076-800
8C	2150	45-2	30702-42972	3102-2455
	1800	37-4	28105-36427	2920-2302
	1800	30-4	25704-35977	3139-2484
	1600	22-4	21848-30580	2268-1795
	1450	18.5-4	15826-29344	2032-1400
	1400	15-4	19992-27982	1899-1503
	1250	11-4	13643-25297	1507-1106
	1250	7.5-4	12224-15705	1209-1166
	1120	11-4	17487-22666	1124-887
	1120	5.5-4	10914-14022	963-929
	1000	7.5-4	15614-20237	895-707
9C	1300	22-4	26432-36996	2072-1640
	1450	30-4	29482-41265	2780-2040
	1550	37-4	30092-42118	2686-2125
	1650	45-4	33548-46956	3338-2642
10C	1470	55-4	40999-55854	3271-2589
	1360	45-4	37931-53091	2800-2216
	1250	37-4	34863-48797	2373-1877
	1120	30-4	31237-43722	1902-1505
	1000	18.5-4	27890-39038	1514-1199
	900	15-4	25101-35134	1225-970
	800	11-4	22312-31230	967-766
	710	7.5-4	19802-27717	761-603
12C	1210	90-4	89630-67930	3420-2630
	1120	75-4	53978-75552	2746-2172
	1000	45-4	48195-60397	2185-1969
	1000	55-4	63953-67457	1859-1729
	900	37-4	43375-60712	1767-1399
	800	30-4	45391-53996	1321-1104
	800	22-4	38556-41973	1395-1376
	710	18.5-4	34218-47895	1097-869
	630	15-6	30362-42498	863-684
13C	1280	132-4	78433-109780	4191-3317
	1200	110-4	73531-102918	3681-2915
	1120	90-4	68629-96057	3209-2540
	1050	75-4	64339-90054	2820-2232
	960	55-6	58825-82335	2358-1866
	890	45-6	54535-76331	2026-1604
